Motor Mount Hints!

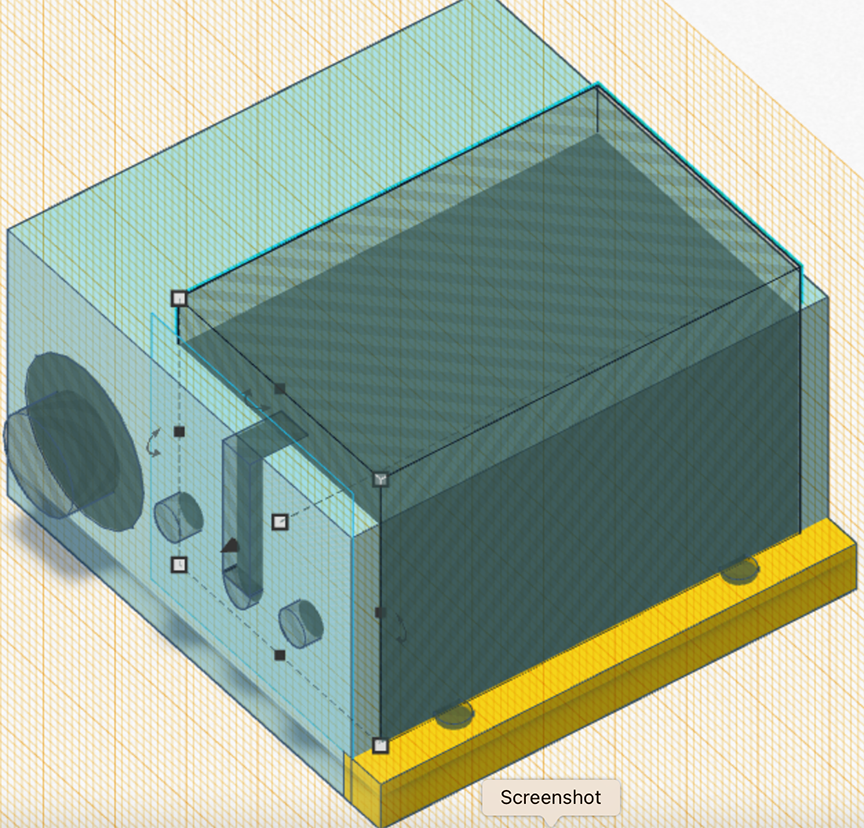

The Motor Mount is a solid block with a lot of holes and space removed from it.

First you will make a solid block. Look at the "Draft" for the measurements.
Second, attach the front base rectangle (yellow) that the screw holes will be drilled into.
Third, I created a large hole in the front for the motor. Look at the "Draft" for the measurement.
Fourth, begin adding all the screw and ball bearing holes to the block.
