Servo Mount - Design Images & Hints!

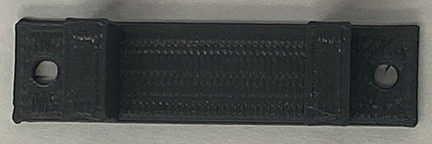

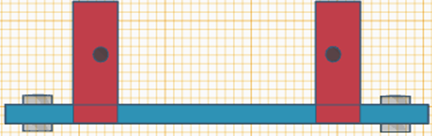

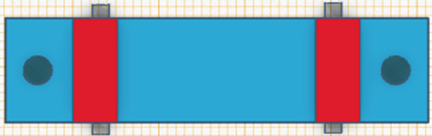

The Servo Mount is very simple to make. Look at the image below and the measurements on the Draft Page. First, I placed two boxes on the screen. Box #1 I made the base (Blue) and gave it a dimension of 49mm x 12mm x 2mm (view the draft!) Box #2 (Red) is 14mm x 12mm x 5mm. Copy and paste this shape - you should now have two red side walls. View the Draft Images and use the arrows on your keyboard to precisely line up the boxes on your Battery Mount. Finally, there are two sets of holes. The holes on the Base are 3.18mm and the holes on the walls are 1.75mm. View the Draft Image for placement of the holes. Group - Print...you are done!

Servo Mount - Design Images & Hints!

The Servo Mount is very simple to make. Look at the image below and the measurements on the Draft Page.

First, I placed two boxes on the screen.
Box #1 I made the base (Blue) and gave it a dimension of 49mm x 12mm x 2mm (view the draft!)
Box #2 (Red) is 14mm x 12mm x 5mm. Copy and paste this shape - you should now have two red side walls.
View the Draft Images and use the arrows on your keyboard to precisely line up the boxes on your Battery Mount.
Finally, there are two sets of holes. The holes on the Base are 3.18mm and the holes on the walls are 1.75mm. View the Draft Image for placement of the holes. Group - Print...you are done!
