Students will apply the skills they have learned so far by designing and engineering an R.C. Car.
Class Code For Spring, 2024: BDS-TK9-1MG
Tinkercad Ruler: Please watch the following video that will show you how to use the Tinkercad Ruler tool. It will save you a tremendous amount of time and increase the accuracy of the measurements. You will no longer have to count the squares on the Work Plane grid: Tinkercad Ruler Tool Tutorial.
R.C. Car Video
Grade Sheet |
|
Image |
Purpose |
Tutorial |

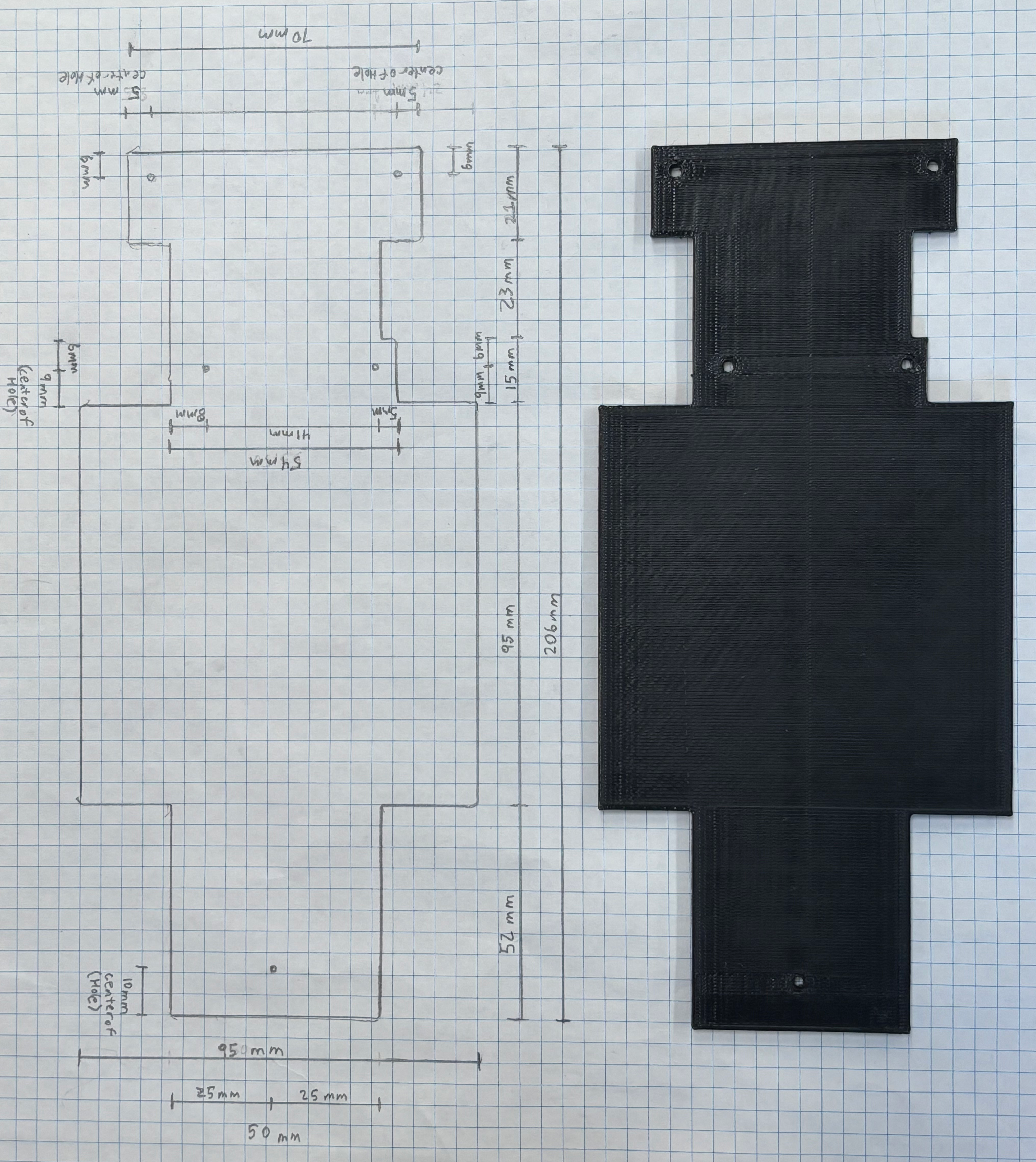

1. Base Plate
|
|
Students will Build the Base Plate that support the vehicle. |
Draft Image
Design Image |

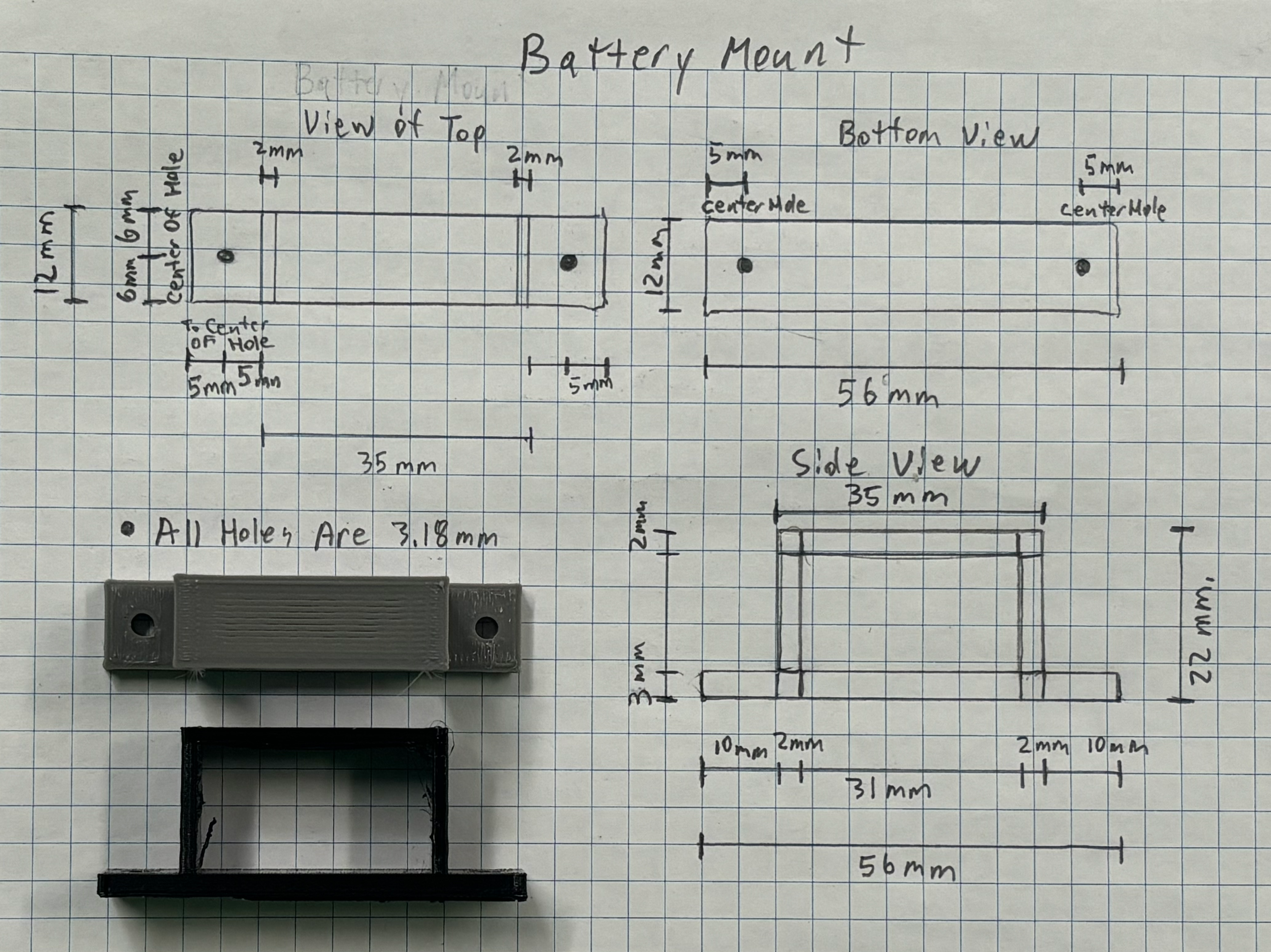

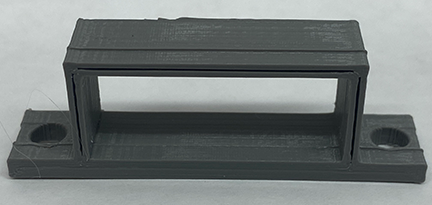

| 2. Battery Mount |
 |
Students will design and build a mount to hold the battery in place. |
Draft
Images |

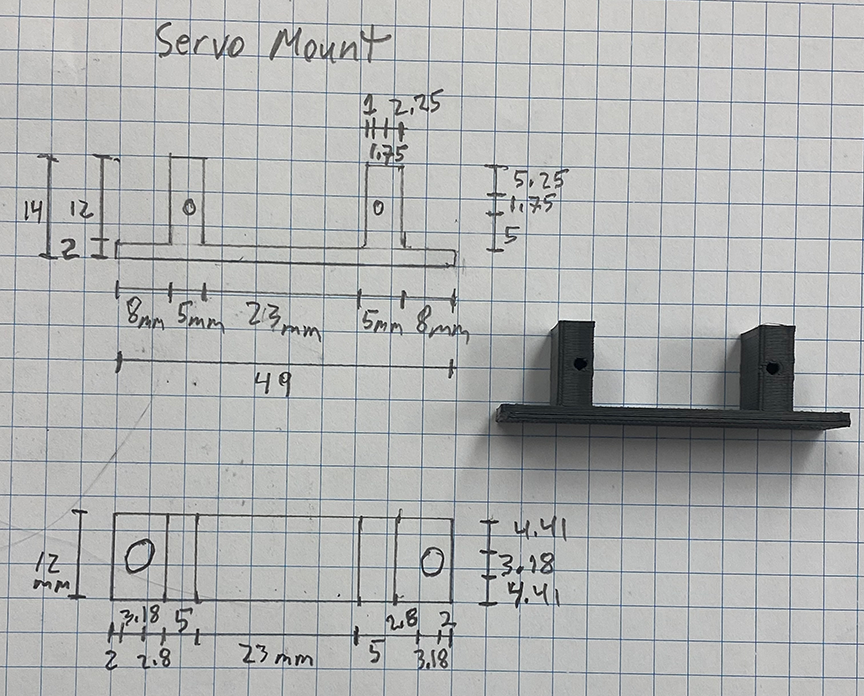

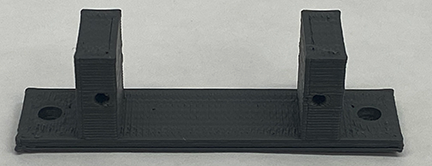

| 3. Servo Mount |
 |
Students will design and build a mount to hold the Servo Motor, which will allow them to steer the front wheels. |
Draft
Images |

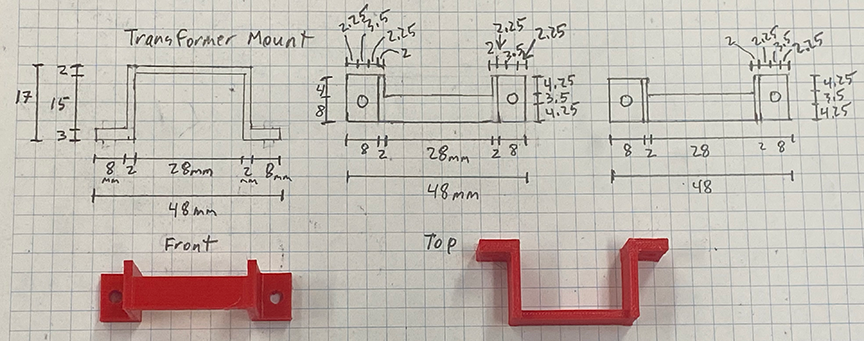

| 4. Transformer Mount |
 |
Students will design and build a mount to hold the Transformer in place. |
Draft
Images |
| 5. Wheels |
 |
Students will design and build the axles and wheels for their car. |
Draft
Images |

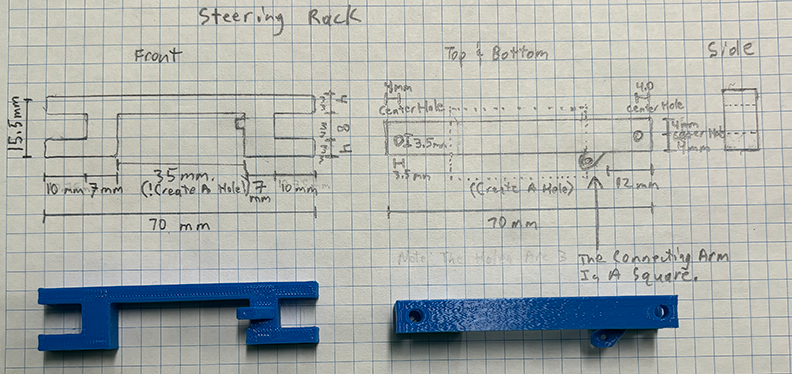

| 6. Steering Rack |
 |
Students will design and build the Steering Rack, which connects the two Steering Columns. |
Draft
Images |

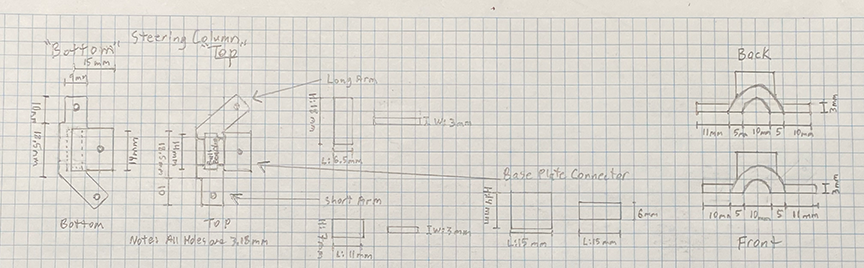

| 7. Lower Steering Column |
 |
Students will design and build the lower Steering Column for their car. |
Images
Draft
|
| 8. Upper Steering Column |
 |
Note: you do not need to create a Draft for the Upper Steering Column. The Upper and Lower Steering Column are the same design...but are flipped. Just copy/paste your Lower Steering Column into a new file and then select the "Mirror" button to the right of the "UnGroup" button. View Instruction #4 in the Lower Steering Column Instructions (above). |
|

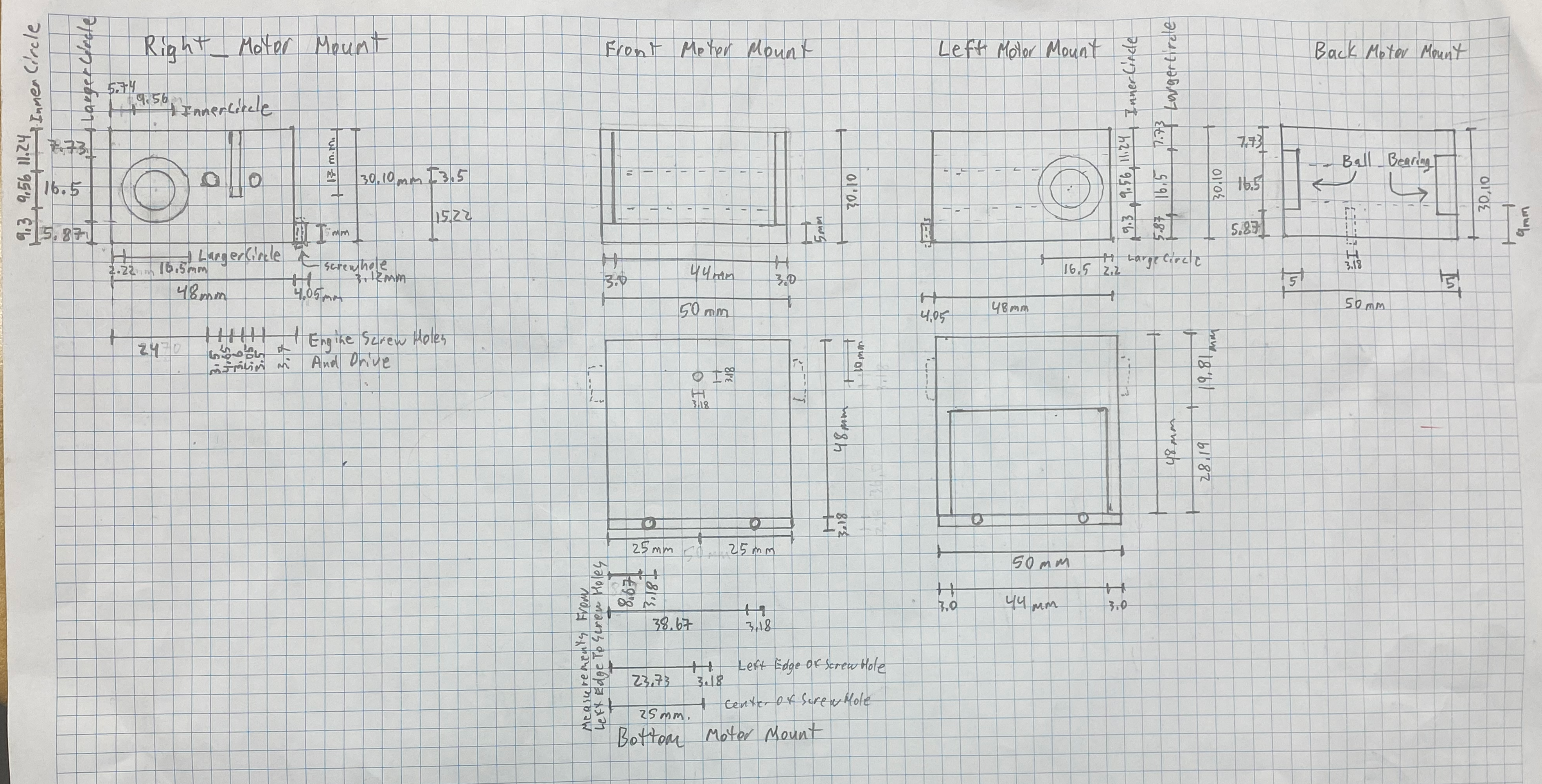

| 9. Motor Mount |
 |
Students will build the mount that supports the motor that turns the gear that spins the axle and the wheels. |
Draft
Images
Hint! |
| 10. Assembly |
 |
Students will assemble and test their Radio Controlled Car. |
Guide |

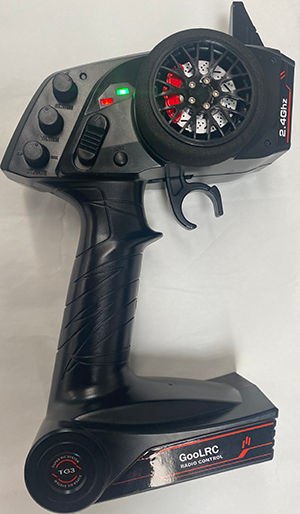

| 11. Connect Transmitter & Receiver |
 |
Students will connect the Radio Controller |
Guide |
